  • Product description: Ningbo Lawson Smarttech Co.,Ltd specializes in the production of: Frozen Tissue Homogenization,DHFSTPRP-96.

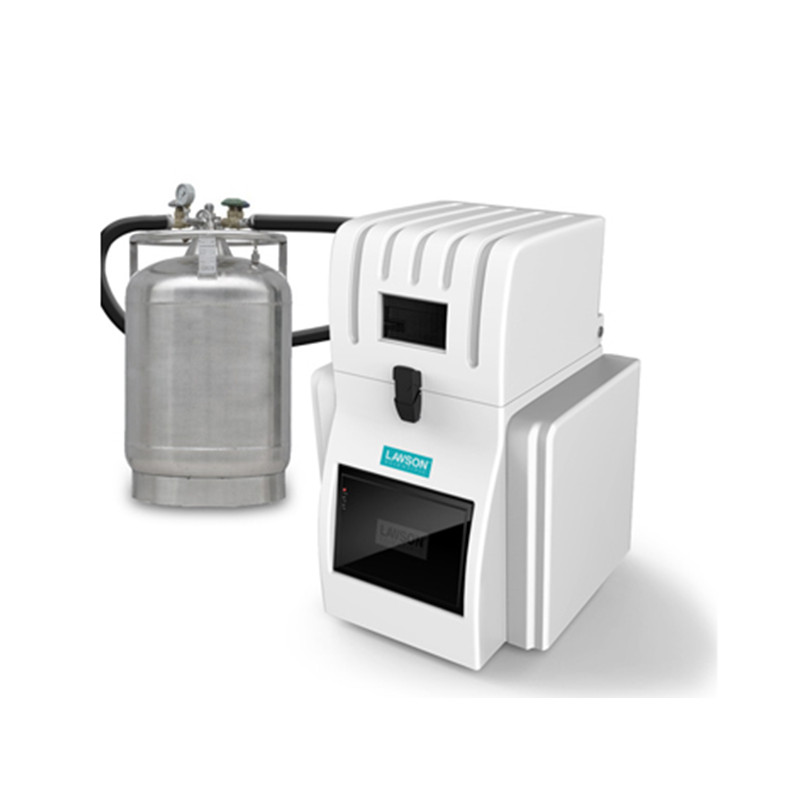

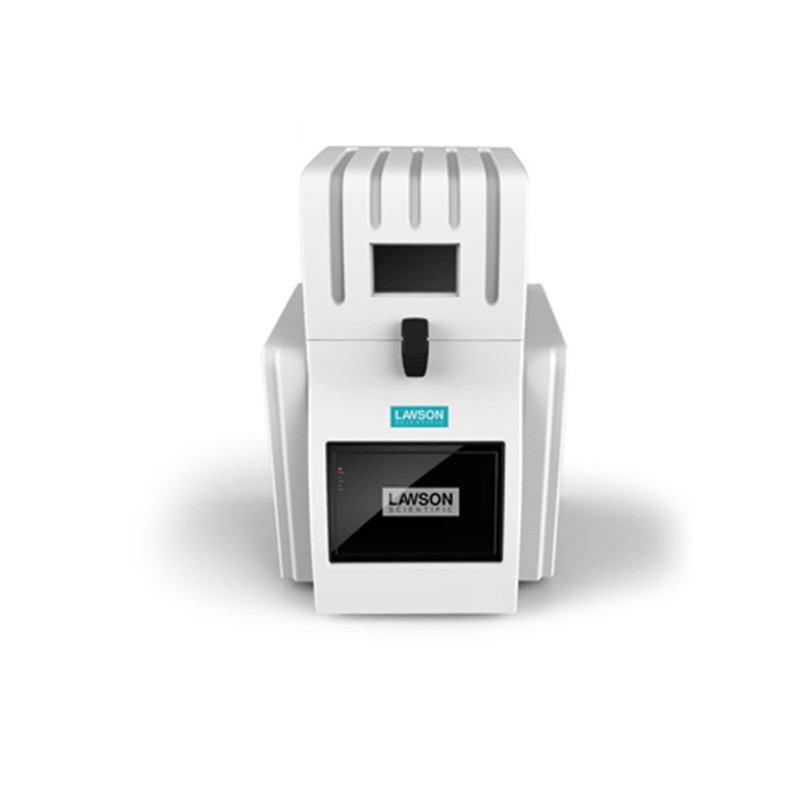

LAWSON DHFSTPRP-96, Frozen Tissue Homogenization is a special, fast, high-efficiency, multi-tube consistent system. It can extract and purify the original DNA, RNA and protein from any source (including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, paleontological specimens, etc.). This instrument is also known as multi-sample tissue grinder, rapid tissue grinder, multi-sample tissue homogenizer, and rapid sample homogenization system.

Compared with other existing sample preparation methods, the DHFSTPRP-96 Frozen Tissue Homogenization has the advantages of wide versatility, high efficiency and flexibility. The system avoids the laborious, time-consuming, inefficient and many other disadvantages of traditional methods such as grinding, homogenization, and ultrasonic treatment, and can efficiently, rapidly and stably lyse and purify nucleic acids and proteins of various types of samples.

Grindable samples:
1. Plant tissues: roots, stems, leaves, flowers, fruits, seeds, etc.
2. Animal tissues: brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph node, muscle, bone, etc.
3. Fungal bacteria: yeast, Escherichia coli, etc.
4. Food and Drugs: All kinds of food, tablets, etc.
5. Volatile samples: coal, oil shale, wax products, etc.
6. Plastics, polymers: PE, PS, textiles, resins, etc.

Frozen Tissue Homogenization instrument, DHFSTPRP-96 adopts a special vertical up-down integrated vibration mode, through the high-frequency reciprocating vibration, impact and shearing of grinding beads (zirconia, steel balls, glass beads, ceramic beads). achieve goals quickly. The ground samples are more complete and uniform, the sample repeatability is better, and there is no cross-contamination between samples.
The number of operations is large, the effect is good
Efficient and fast work can complete the grinding of 24 samples in 3 minutes. Save time and effort, and the difference between batches and batches is small. The extracted protein has higher specific activity and longer nucleic acid fragments.
No cross-contamination The sample tube is completely closed during the crushing process, and disposable centrifuge tubes and beads can be used. The sample remains intact in the tube to avoid cross-contamination between samples and external contamination.
Easy to operate 1. Built-in program controller, which can set parameters such as grinding time and rotor vibration frequency;
2. Humanized operation interface.
Good stability 1. The vertical oscillation method is adopted, the grinding is more sufficient, and the stability is better;
2. During the operation of the instrument, the noise is less than 90dB, which will not interfere with other experiments or instruments.
Convenient low-temperature operation When a low-temperature grinding environment is required, the adapter with the sample can be immersed in liquid nitrogen to cool for 1-2 minutes. After taking it out, move it to the host and quickly fix it to start grinding. There is no need for re-freezing treatment, saving liquid nitrogen.
Good repeatability Set the same program for the same tissue sample to obtain the same grinding effect. The working time is short and the sample temperature does not rise.

Application areas: tissue grinding, homogenization, cell disruption, homogenization, material dispersion, preparation, sample mixing, shaking, etc.
Processing capacity: The maximum processing capacity can process 24 samples at the same time in 3 minutes, including the liquid nitrogen freezing adapter that can be used for 12 and 24 positions
Compatible sample book: Compatible sample book: 96*(0.2-0.5ML) /24*2ML, various specifications of grinding tubes can be customized
Display mode: LCD screen display, touch screen display (upgradeable)
Anti-vibration principle: German patented schleifen-1 working method Patented anti-vibration principle, and three-dimensional movement of up and down and left and right shaking & & &       effect.
Maximum feed size: no requirement, adjust according to adapter
Final discharge particle size: ~5µm
Number of grinding platforms: (acceptable number of grinding jars)>2
Fastening device: with automatic centering
Homogenizing speed 0~65 Hz/sec, working time: 0 sec~99 min, user can set by himself
Grinding ball diameter: 0.1~30mm
Grinding ball material: alloy steel, chrome steel, zirconia, tungsten carbide, quartz sand
Acceleration: Reach max speed in 2 seconds
Slowdown: Reach minimum speed in 2 seconds
Noise level: 90db
Grinding method: wet grinding, dry grinding, low temperature grinding
The constant temperature can be reconfigured: with the ability to upgrade to ultra-low temperature liquid nitrogen refrigeration or air refrigerator refrigeration
Adapter material: PTFE, alloy steel
Safety instructions: Fastening device with automatic centering, safety lock when working, full protection
Grinding Kit Material: Hard Rigid, Teflon (Teflon), Zirconia
Dimensions: 280*400*530
Weight: 18 Kg

Host a DHFSTPRP-96
Adapter Ø2ml set
Refrigeration adapter Ø2ml set or Ø1.5ml set (choose 1 of 2)
Grinding Beads 1. Ø5 imported stainless steel grinding beads 1000 or Ø5 imported ceramic grinding beads 1000 (choose 1 from 2);
2. Ø3 imported stainless steel grinding beads 1000.
200 special grinding tubes
A set of special bead gun (optional)
Extraction object: animal tissue-DNA LW-D-P1 (optional)
Extraction object: animal tissue-RNA LW-D-P2 (optional)
Extraction object: animal tissue-protein LW-D-P3 (optional)
Extraction object: plant tissue-DNA LW-Z-P1 (optional)
Extraction object: Plant tissue-RNA LW-Z-P2 (optional)
Extraction object: plant tissue-protein LW-Z-P3 (optional)
Extraction object: Microorganism-DNA LW-W-P1 (optional)
Extraction object: microorganism-RNA LW-W-P2 (optional)
Extraction object: microorganism-protein LW-W-P3 (optional)

Precautions before use:
1. The matching LW kit can be used to quickly, efficiently, stably, and batch extract DNA/RNA proteins from samples.
2. 1Hz=30 revolutions/second / 1Hz=100RPM
3. Conventional adapters can be refrigerated to give samples a cool environment while working. It can be equipped with an adapter with refrigeration, which can be soaked in liquid nitrogen for more than 30 minutes.
4. The noise emission value for the working environment depends on the type of sample and the settings of the grinder. The parameters in the table are in the no-load state.
5. Small samples typically used for DNA and RNA isolation can be prepared in disposable centrifuge tubes. Adapters made of teflon material can be used to hold 5 or 10 disposable sample tubes for cell disruption. The cell tissue in the machine is quickly and effectively broken up in a very short time, so no additional low-temperature refrigeration is required.
